30mW 30KM Visual Fault Locator(VFL) Red Light Pen Fiber Optic Cable Tester Testing Equipment, Fiber Checker/Decector/Finder

(5 customer reviews)

$22.99

[wcj_product_wholesale_price_table]

  • 1. EASY AND ACCURATE IDENTIFICATION – It can easily and accurately detect and locate fiber breaks, poor connections, bending or cracking. The detector will emit a 650nm bright light for fiber tracing, breaks or faults in the fiber will refract the light;
  • 2. PRACTICAL DESIGN AND EXCELLENT FUNCTION – Small size and lightweight, it is portable and easy for field test with multiple functions such as constant output power, lower battery warning, long battery life and long distance detection;

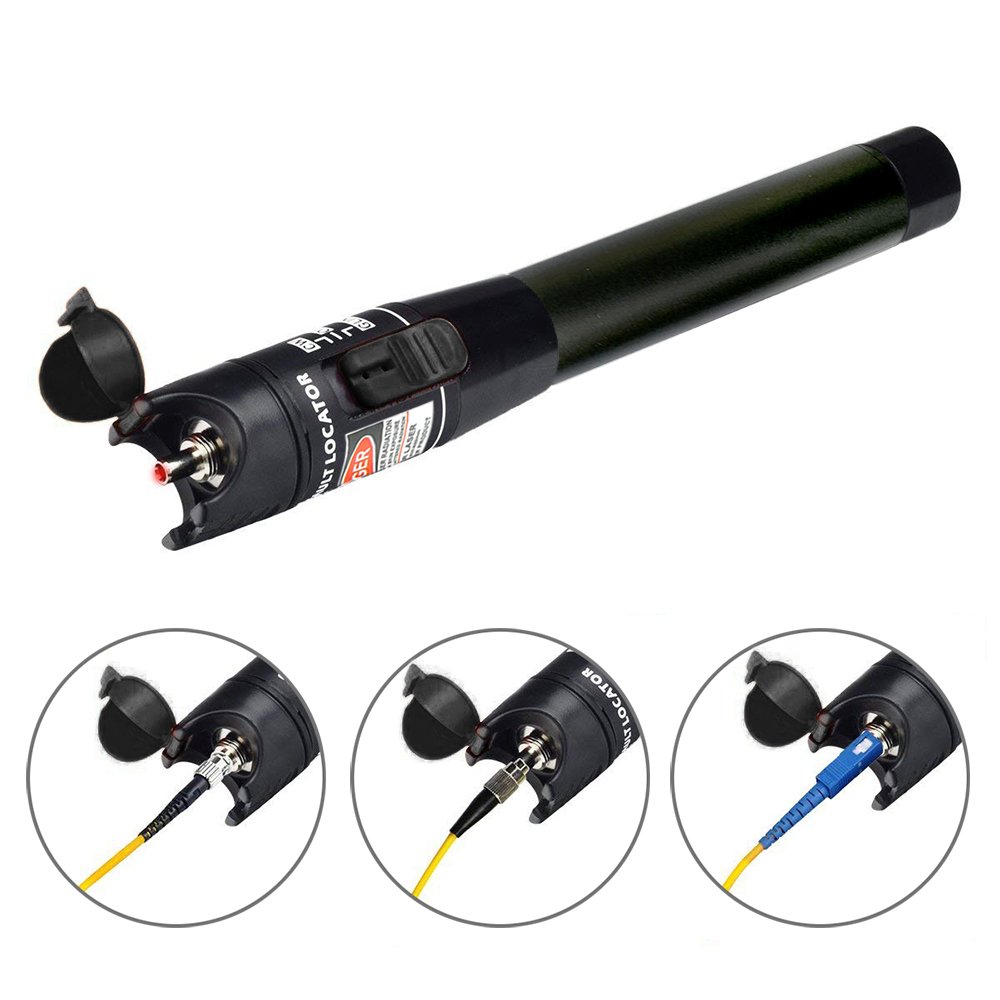

  • 3. WIDELY USED: The 2.5mm universal connector of the detector is compatibly designed for ST, SC, FC interferes both in circle and square shape of different fiber optic cables.Test for both single-mode and multi-mode cables;
  • 4.LONG OUTPUT DISTANCE: This 30mW visual fault locator with battery output strong red light goes 20-30 kilomters far, high effective power circuits allows for stable power;

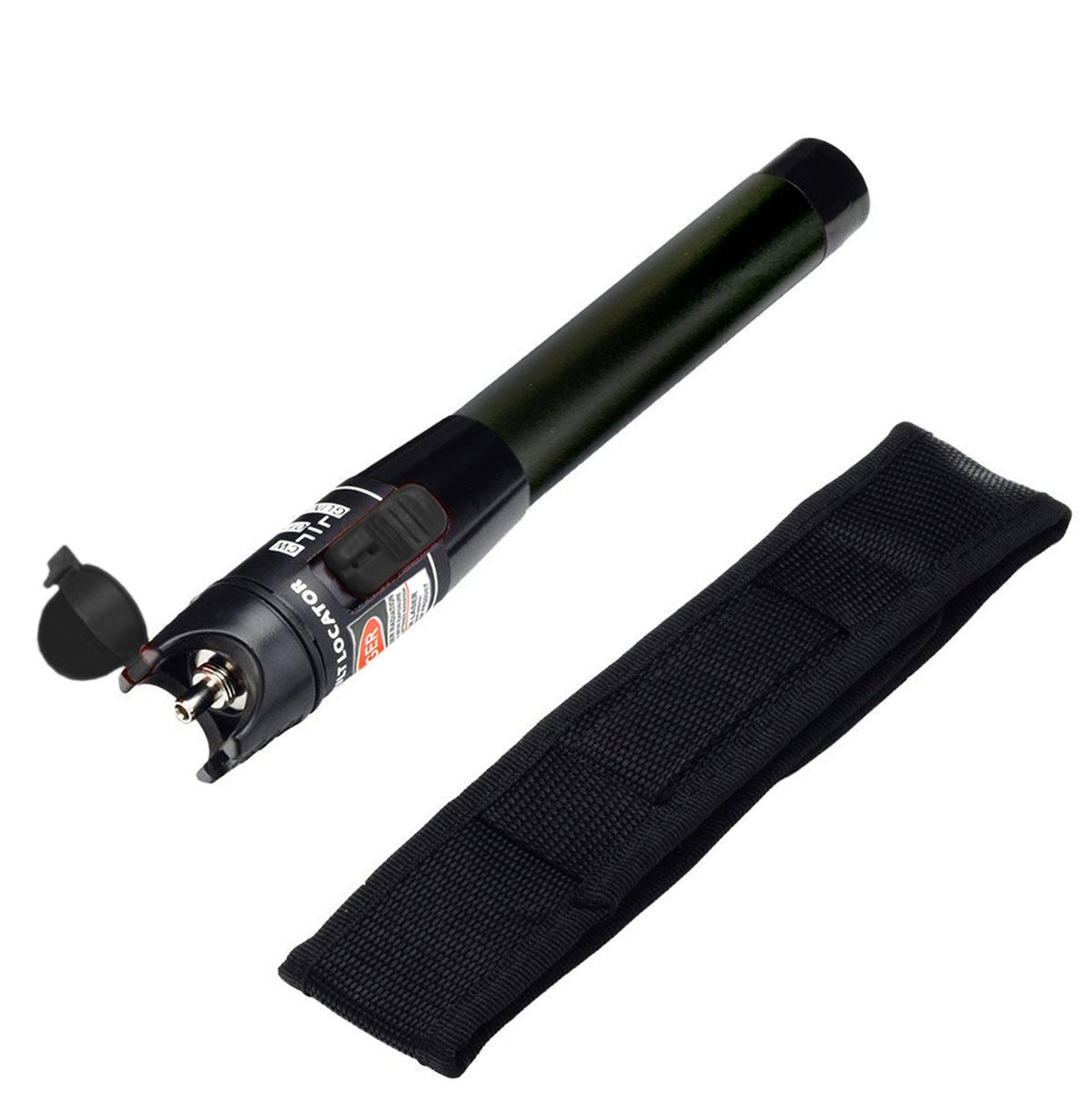

  • 5.PORTABLE: Pen-type design with pouch make it portable, easy to check fiber faults with visual fault locator, rugged,Dust-proof design keep fiber connectors clean;

Ship to US: Amazon logistics(FBA) support;

Quantity Price
1 - 4 $22.99
5 - 9 $21.99
10 - 19 $19.99
20+ $18.49

Description

Overview:

Karono 30mW visual fault locator is used for the measurement in single-mode or multi-mode fibers. 650nm Pen-type Visual Fault Finder for fiber tracing, fiber routing and continuity checking. It features a black design, a universal connector and an accurate measurement. It locates fibers, finds faults, verifies continuity and polarity. It is wide used in telecommunications engineering and maintenance, CATV engineering and maintenance, cabling System and other fiber-optic project..

Specifications :

Wavelength: 650nm±10nm;
Emitter Type: FP-LD red light;
Output power: 30mW;
Output distance: 20 – 30KM;

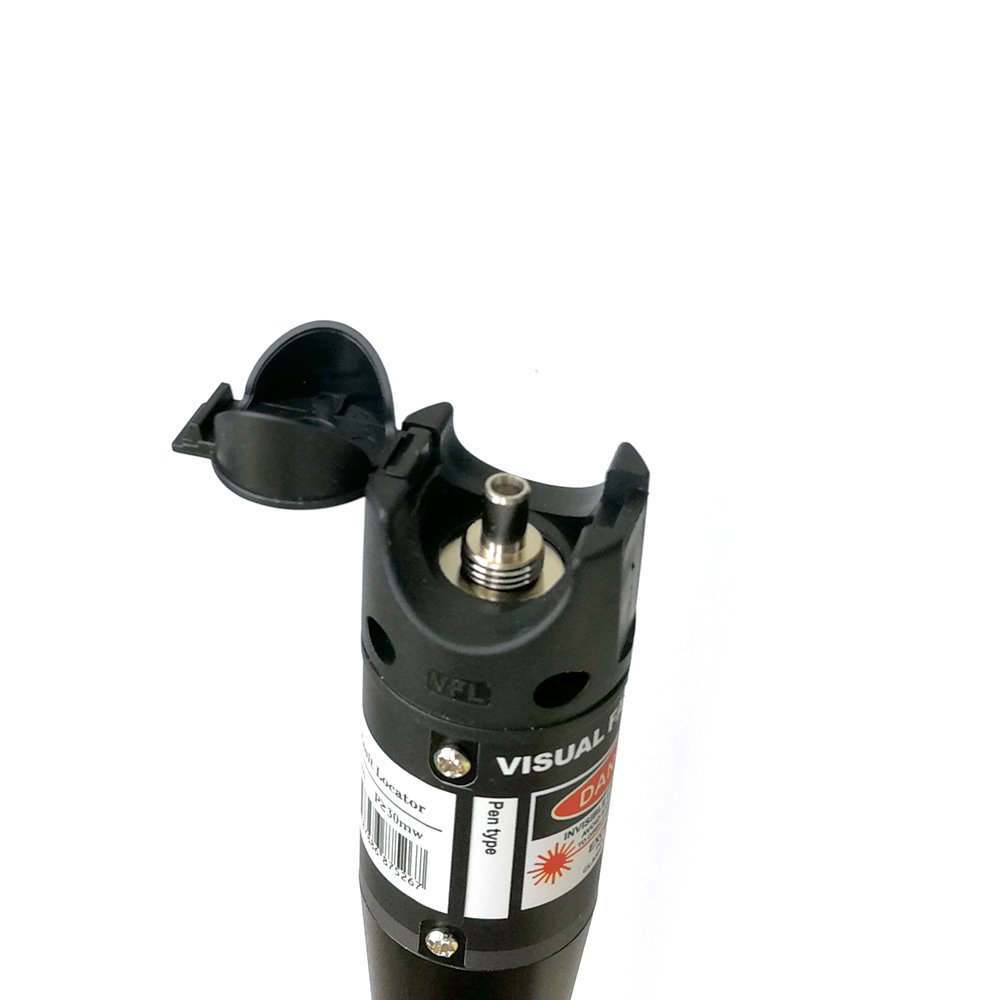

Connector: 2.5mm universal adapter;

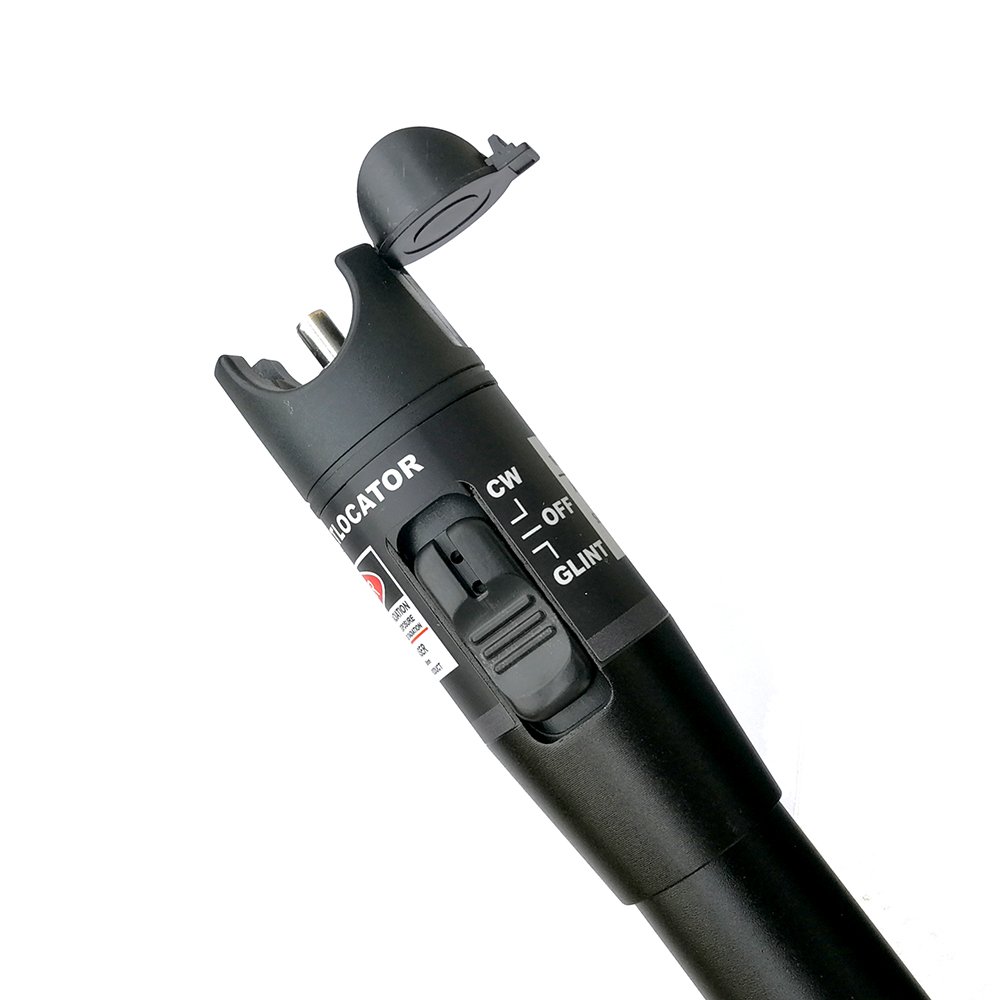

Working mode: Both CW and Pulse available;
Operating temperature: 0 – 60℃;
Storage temperature: -20 – 70℃;
Power: 2pcs AA Alkaline battery;
Working hours: ≥ 60;
Weight: 100g (excluding batteries);
Dimension (mm): 175*26*26;

Free Shipping Methods:

Preparation for shipping normally takes 1-2 Business days after payment.
Ship to US: Amazon logistics(FBA) support;
Ship outside the US: Multiple Delivery Options,2-8 Business days;

Buy It at Amazon

5 reviews for 30mW 30KM Visual Fault Locator(VFL) Red Light Pen Fiber Optic Cable Tester Testing Equipment, Fiber Checker/Decector/Finder

    Kevin H.
    July 4, 2020
    Well made and works perfectly in broad daylight. I've used it mostly on singlemode fiber but it works fine on multimode too.
    OLAF L.
    May 1, 2020
    Sincerely,A Satisfied Customer
    JMB
    April 29, 2020
    Powerfull 30mw laser.Great value for money
    Michael S.
    April 18, 2020
    Were very helpful in helping us select the right product.
    JL
    April 17, 2020
    I received the VFL Fast!

Only logged in customers who have purchased this product may leave a review.
