12 Fibers MTP / MPO Fiber Optic Patch Cables

The MPO-12 is a globally recognized standard interface for multimode and singlemode applications. The MPO-12 has been available for several decades and widely used as trunk cable connector for duplex and simplex applications.

  • The most familiar MPO connector/trunking cabling interface
  • AB/BA Cross Connection for 40Gbase Module Link
  • Lower density for duplex applications compared to MPO-24 systems
  • Better density for duplex applications compared to MPO-8 systems

Overview

MPO-MPO 12 Fibers – The MPO-12 is a globally recognized standard interface for multimode and singlemode applications. The MPO-12 has been available for several decades and widely used as trunk cable connector for duplex and simplex applications. Among the most popular multifiber count to use when interconnecting high density patch panels. MPO 12 fiber connectors are abundantly found in the field and remain the connector of choice for most applications. Each 12 fiber MPO connector is able to establish a single 40G link. But are more often used to establish back end trunk connections.The MPO-12 is a globally recognized standard interface for multimode and singlemode applications. The MPO-12 has been available for several decades and widely used as trunk cable connector for duplex and simplex applications.

Features

  • MTP / MPO Push-Pull Connectors for Quick Fiber Optic connections
  • Push/Pull tab connectors offer maximum accessibility in high density installations; install / remove with one hand
  • 12 times the density of SC style connectors
  • High Density design cuts down on installation costs
  • 50/125 OM3 Rated Multimode Fiber, 850nm
  • Plenum rated jacket
  • Unique cable ID label for Quality Control and Traceability
  • Each cable 100% tested for low insertion loss and back reflection
  • Test data supplied with each cable
  • Custom lengths available

Specifications

● MMF (50 / 125um), OM3
● 12Core high fiber density
● Insertion loss: <0.7 dB (<0.5dB Optional)
● Return loss:> 25dB
● Insertion and extraction test: 500 times <0.5 dB
● Operation: temperature: -40 ℃ ~ + 80
● Optional pin: Default FEMALE
● POLARITY Optional

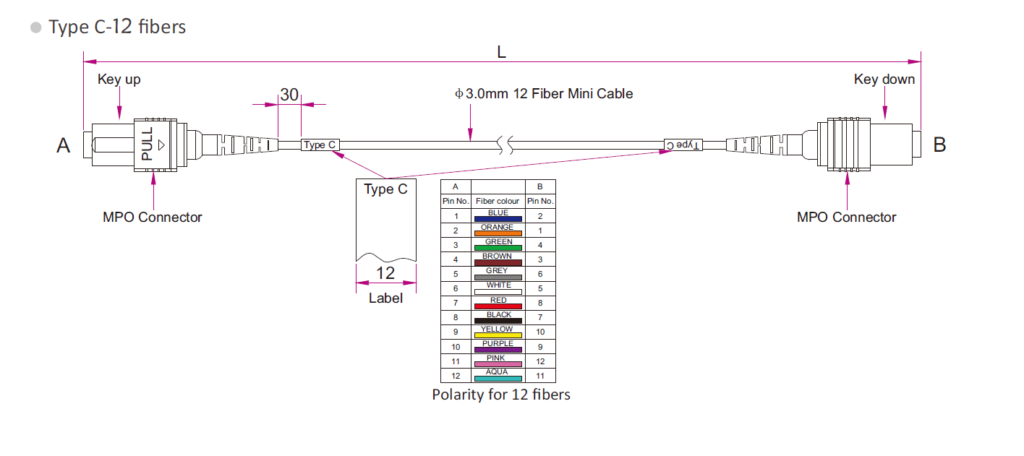

Drawing

Please Note: Attenuation testing performed in accordance with EIA/TIA-455-171A.
