Sale!

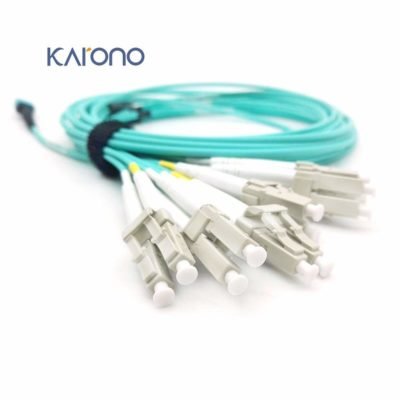

16.5ft MPO/MTP to 12 x LC (6 Duplex), Type-B 10G/40G OM3 Multi-mode Fan-out Fiber Optic Cable – Aqua (5M)

(1 customer review)

$54.99 $51.99

  • This 5 meter (16.5ft) high-quality MPO to 12x LC(6 Duplex) Fanout/breakout Cable, MPO Connector Female without PIN.
  • MMF(50/125um), OM3 10G standard, LSZH -12 Core Fiber
  • Jacketed with compounds that emit limited smoke and no halogen when exposed to high heat sources(Low-smoke-zero-halogen Rated).
  • Insertion loss: 35dB, Insert- pull test: 500times<0.5 dB.
  • For QSFP+ Transceivers Link, Contact us for OEM or Custom.

Quantity Price
1 - 4 $51.99
5 - 9 $50.99
10 - 19 $48.99
20+ $46.99

Description

Overview:

This MPO breakout/fan-out fiber cable is ready for deployment in any multimode 50/125 MTP/MPO network. OM3 is fully backward-compatible with existing OM2 or OM1 systems. This multimode, MPO fiber cable is comprised of 12 fibers or 6 duplex channels within each connector. These high density cables are perfect when you have limited space, making it possible to run a single cable that automatically terminates 12 fibers in one easy plug-in. The fan-out side has 12 LC connectors that are numbered according to the fiber position in the MPO Connector and duplexed together. The push-pull release mechanism for the MPO connector is easy to engage and disengage, its latch design also prevents the plug from snagging when jumper cables are being routed.

Product Specifications



Connector AMPO/MTPConnector B12 x LC
Fiber ModeOM3 50/125μmWavelength850/1300nm
40/100G Ethernet Distance100m at 850nm10G Ethernet Distance300m at 850nm
Multi-mode ClassOM3Minimum Bend Radius7.5mm
Trunk Diameter3.0mm-10.0mmBreakout Leg2.0/0.9mm
MTP Connector IL0.35dBLC Connector IL≤0.2dB
MTP Connector RL≥20dBLC Connector RL≥30dB

Free Shipping Methods:

Preparation for shipping normally takes 1-2 Business days after payment.
Ship to US: Amazon logistics(FBA) support;
Ship outside the US: Multiple Delivery Options,2-8 Business days;

Additional information

Lengths

Buy It at Amazon

1 review for 16.5ft MPO/MTP to 12 x LC (6 Duplex), Type-B 10G/40G OM3 Multi-mode Fan-out Fiber Optic Cable – Aqua (5M)

    Yoddler
    April 4, 2020
    It worked perfectly as described.
